YFUSET

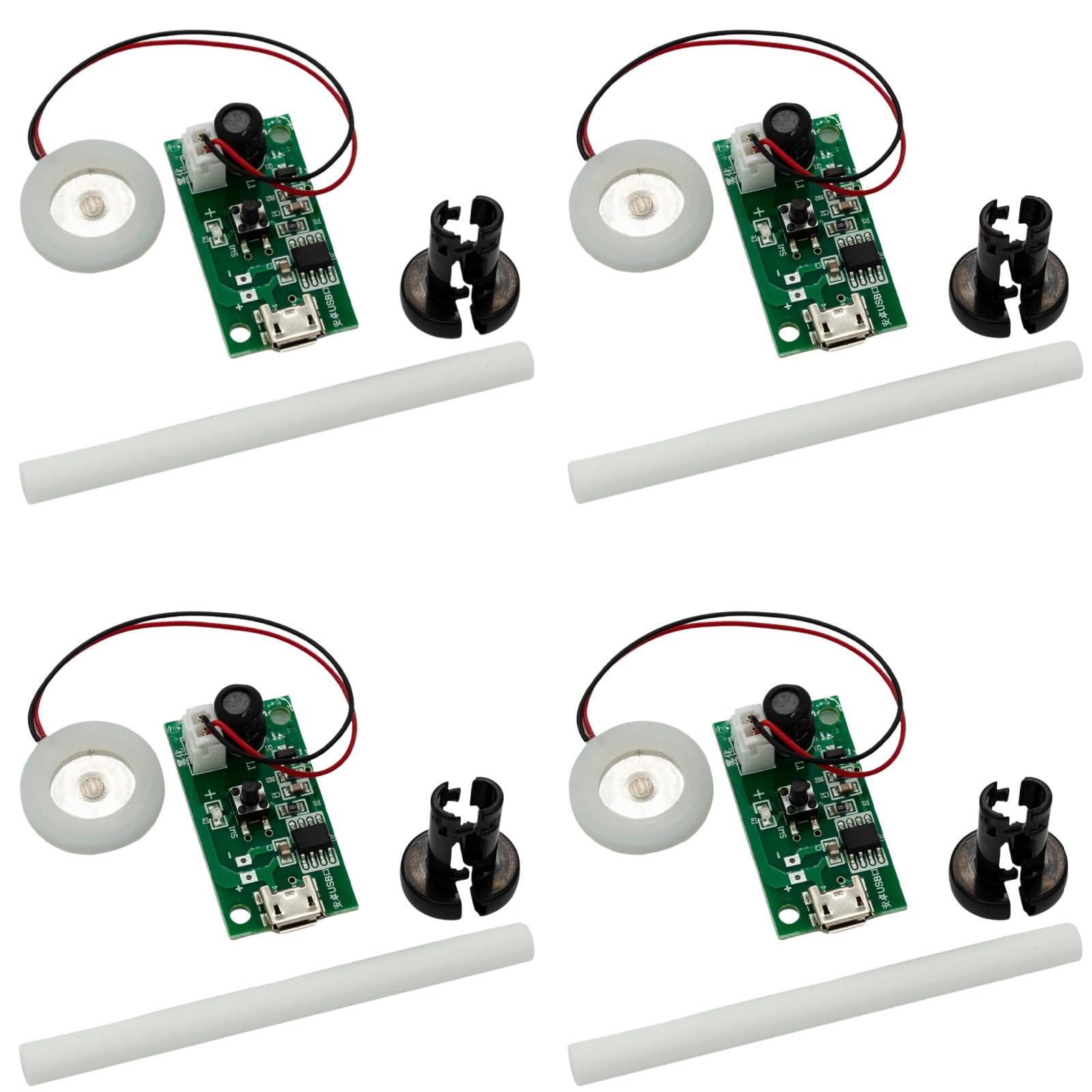

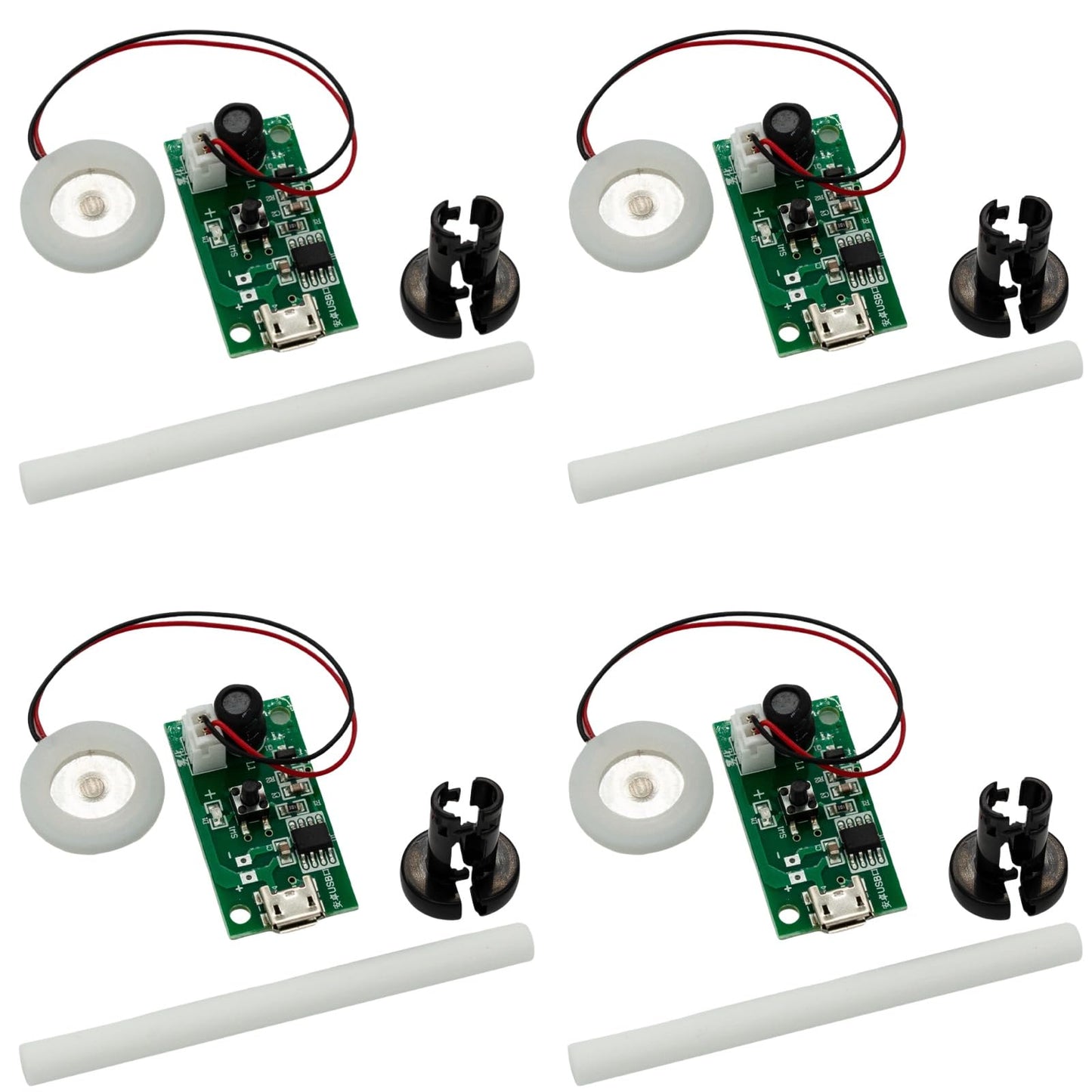

4PCS 5V USB Humidifier Atomization Disc Kit with Circuit Board and Spray Module Professional Atomization Module for DIY Home Experiments Incubators Experimental Equipment Compatible

4PCS 5V USB Humidifier Atomization Disc Kit with Circuit Board and Spray Module Professional Atomization Module for DIY Home Experiments Incubators Experimental Equipment Compatible

Regular price $14.99 USD
Regular price $14.99 USD Sale price $14.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

Brand: YFUSET

Features:

  • Smart Spray Modes:Continuous Mode: 1st press activates LED-lit constant spray with 4-hour auto-shutdown;Intermittent Mode: 2nd press initiates 10s spray/5s pause cycles (LED flashing) with 12-hour auto-shutdown;3rd press powers off.
  • Precision Driver Board:DC5V/300mA input with 1.5-2W power efficiency;FR-4 fiberglass PCB (1.2mm thickness, 34.8×18.6×13mm compact size),7.3g lightweight design for DIY integration.
  • High-Performance Atomizer:108-110kHz resonance frequency with 4-5μm micron apertures 1100 ultra-dense microholes on 304 stainless steel (Ø16mm active area),Piezoelectric ceramic ring (Ø20×3.5mm) with 100mm PH2.0 terminals (1.9g total weight).
  • Other features:Switch bypass: Solder both contact pads for permanent spray (disables auto-shutdown);Direct power connection: Solder ± terminals for external 5V supply (non-USB applications).
  • Security protection:Waterproof encapsulation protects solder joints from humidity;Silver-plated terminals prevent oxidation corrosion.

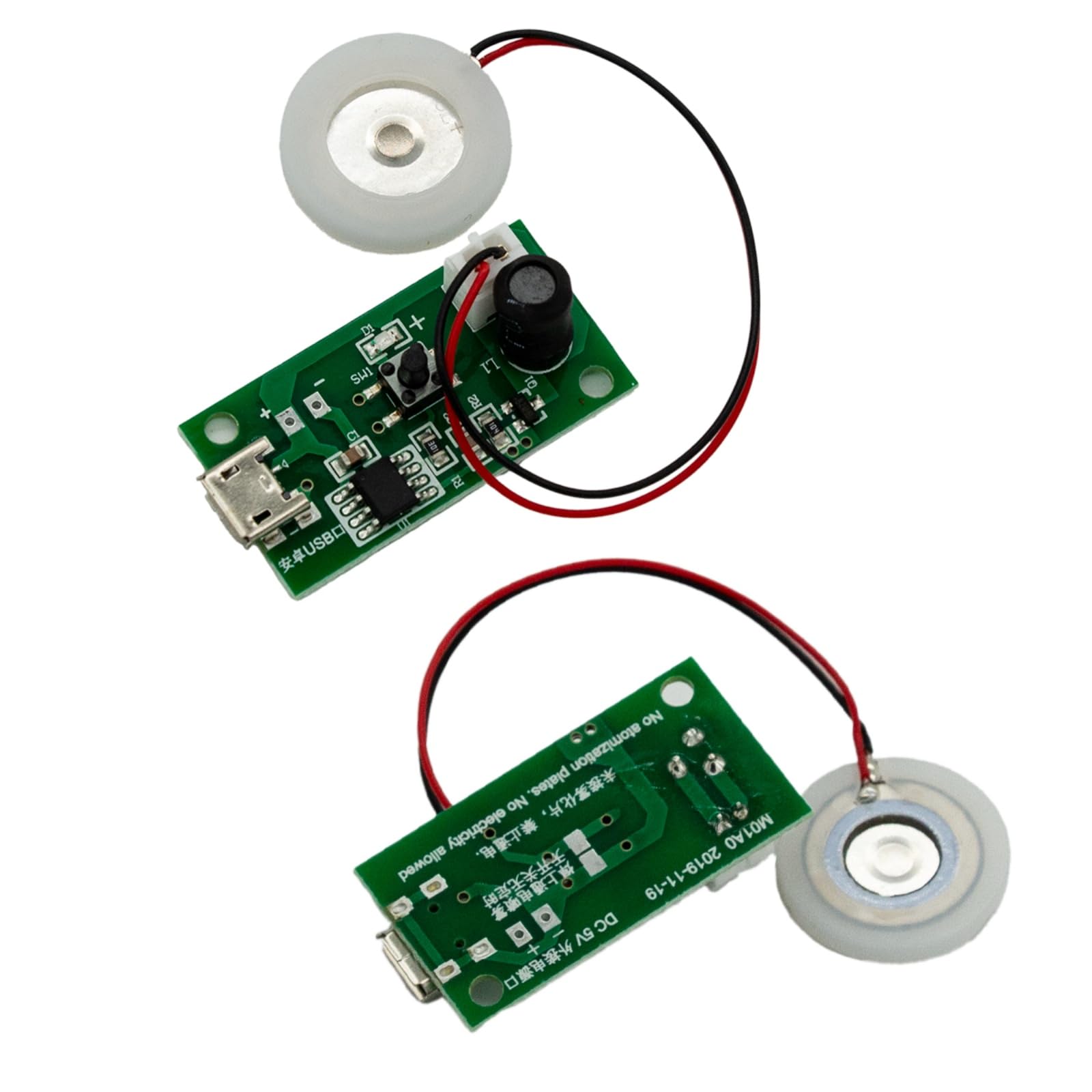

Details: Product Name: Atomization Drive Circuit Board
Rated Voltage: DC5V
Rated Current: 300mA
Power: 1.5-2W
Material: 1.2mm FR-4

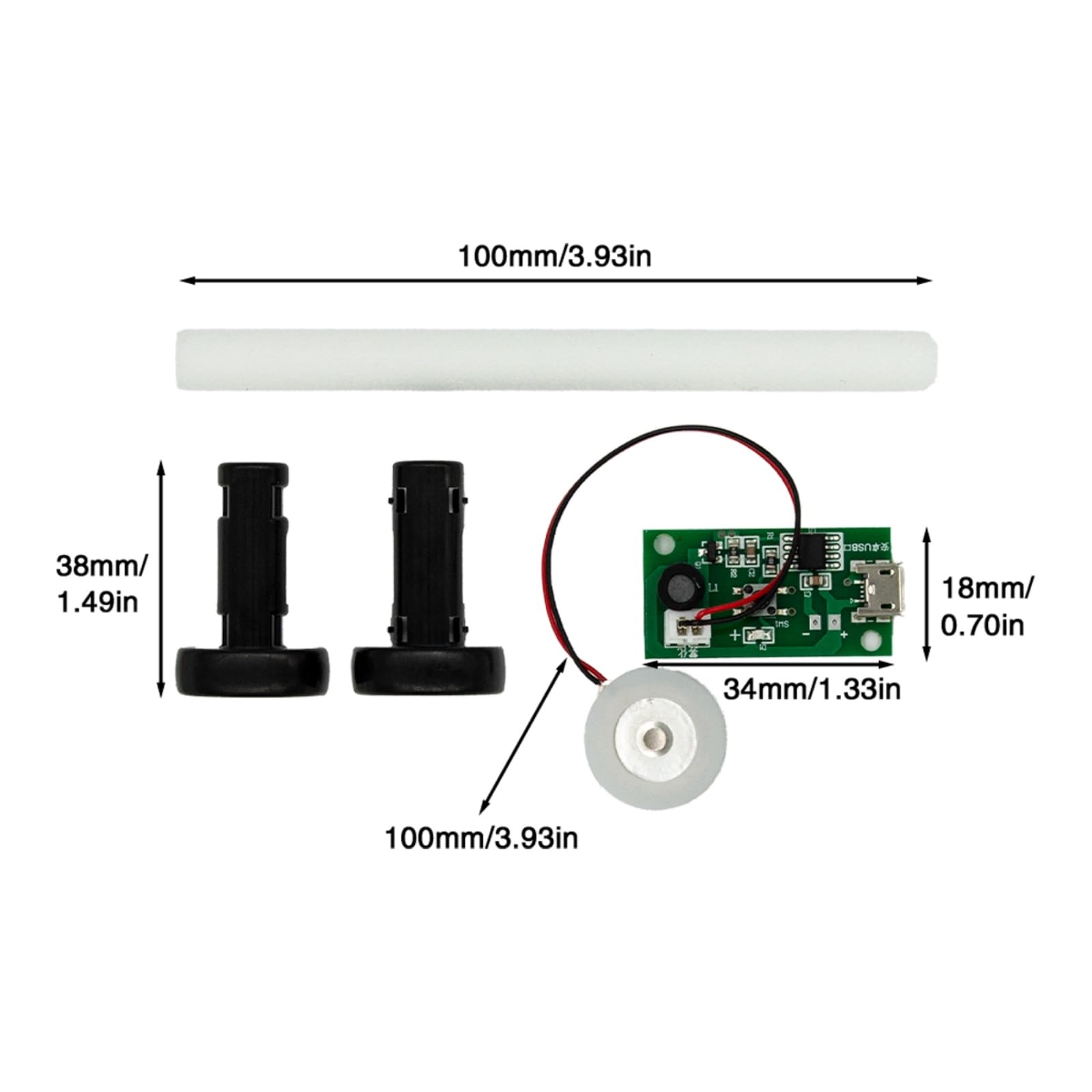

Size: 34.8*18.6*13mm
Weight: Approximately 7.3g
Product Name: Microporous Atomization Sheet
Size (mm): Ø16mm steel sheet
Rubber Ring (mm): Ø20mm rubber ring, thickness 3.5mm
Wire Length: 100mm
Resonant Frequency: 108-110KHZ
Aperture: 4-5um
Number of Holes: 1100 holes
Material: Piezoelectric Ceramic Ring + 304 Stainless Steel Sheet
Terminal Head: PH 2.0
Weight: Approximately 1.9g

Package Dimensions: 0.2 x 0.2 x 0.2 inches
